ASIP-1
The programmable filter engine (PFE) is a configurable and expandable IP that implements FIR, decimation, interpolation and IIR filtering functions. The user is afforded the ability to allocate and configure the resources of a set of instantiated filtering element functions to satisfy the project requirements. A micro-code program is developed, using the engine's instruction set, to configure the connectivity of the engine filter elements and then to control the engine execution of the required filtering functions.
查看 ASIP-1 详细介绍：
- 查看 ASIP-1 完整数据手册
- 联系 ASIP-1 供应商

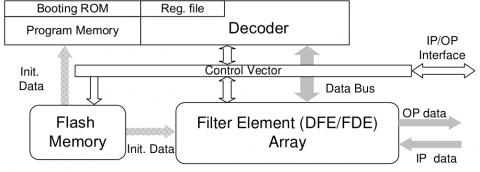

Block Diagram of the ASIP-1
