AMBA AHB to APB Bus Bridge Core
The AHB2APB implements an AHB to APB bus bridge, allowing the connection of peripherals with an APB interface to an AHB bus.
The highly-configurable core translates read or write AHB bus transactions to APB bus transactions. A full AHB or AHB-Lite master, such a microprocessor, can connect to its AHB slave interface, and an APB4, APB3, or APB2 peripheral can connect to its APB master port. Furthermore, the endianness and the data bus widths of the AHB and APB interfaces are independently configurable. The user can also select the number of APB slaves and their address mapping at synthesis time. To ease core configuration, the core’s deliverables include a software application that enables users to configure the core via an intuitive HTML interface and automatically generate the corresponding Verilog parameter values.
The LINT-clean and scan-ready AHB2APB core is extensively verified and proven in multiple production designs. It can be mapped to any ASIC or FPGA, provided sufficient silicon resources are available, and it is delivered with everything required for successful implementation including a test-bench and comprehensive documentation.
The highly-configurable core translates read or write AHB bus transactions to APB bus transactions. A full AHB or AHB-Lite master, such a microprocessor, can connect to its AHB slave interface, and an APB4, APB3, or APB2 peripheral can connect to its APB master port. Furthermore, the endianness and the data bus widths of the AHB and APB interfaces are independently configurable. The user can also select the number of APB slaves and their address mapping at synthesis time. To ease core configuration, the core’s deliverables include a software application that enables users to configure the core via an intuitive HTML interface and automatically generate the corresponding Verilog parameter values.
The LINT-clean and scan-ready AHB2APB core is extensively verified and proven in multiple production designs. It can be mapped to any ASIC or FPGA, provided sufficient silicon resources are available, and it is delivered with everything required for successful implementation including a test-bench and comprehensive documentation.
查看 AMBA AHB to APB Bus Bridge Core 详细介绍：
- 查看 AMBA AHB to APB Bus Bridge Core 完整数据手册
- 联系 AMBA AHB to APB Bus Bridge Core 供应商

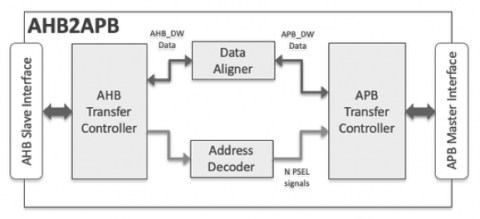

Block Diagram of the AMBA AHB to APB Bus Bridge Core
