AHB Single Channel DMA Controller
The DMA is a configurable single channel direct memory access controller. The DMA IP Core is a Verilog HDL design that can be used in ASIC, Structured ASIC and FPGA designs. The design is intended to be used with AMBA based systems as a controller to transfer data directly from system memory to memory or system memory to peripheral device or IP Core.
Once set up, the DMA controller is primarily an AHB Master, which initiates data transfers across the AHB bus to/from a peripheral device through the DMA Buffer. The DMA Buffer is a scalable x32bit FIFO, which is useful for peripheral devices requiring a steady stream of data such as an LCD Controller, Ethernet MAC or other communication device.
The DMA controller contains useful features such incrementing and non-incrementing addressing and link list operation. Linked list support is useful for non-contiguous memory transfer operations.
Multiple DMA controllers can be placed in the AHB System to provide multiple channel DMA control.
Once set up, the DMA controller is primarily an AHB Master, which initiates data transfers across the AHB bus to/from a peripheral device through the DMA Buffer. The DMA Buffer is a scalable x32bit FIFO, which is useful for peripheral devices requiring a steady stream of data such as an LCD Controller, Ethernet MAC or other communication device.
The DMA controller contains useful features such incrementing and non-incrementing addressing and link list operation. Linked list support is useful for non-contiguous memory transfer operations.
Multiple DMA controllers can be placed in the AHB System to provide multiple channel DMA control.
查看 AHB Single Channel DMA Controller 详细介绍:
- 查看 AHB Single Channel DMA Controller 完整数据手册
- 联系 AHB Single Channel DMA Controller 供应商

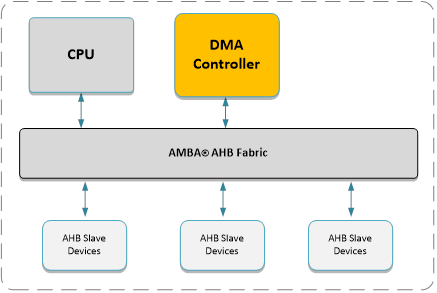

Block Diagram of the AHB Single Channel DMA Controller
