AHB External Bus Interface
The number of read wait states, the number of write wait states, and the memory width are all configurable through the APB register interface of the EBI. The EBI allows word, half-word, and byte width addressing to 32-bit, 16-bit, and 8-bit external devices.

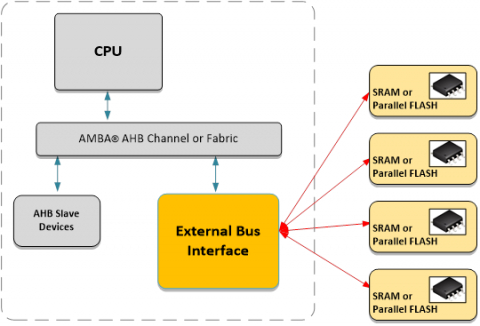

The EBI translates AHB writes and reads into writes and reads for the external device. In order to accomplish this task, the EBI is comprised of five major functional blocks: APB Register Interface, Wait State Generation, Address Generation, Control Signal Generation, and Data Steering.
