AHB Channel with Decoder and Data Mux
The AHB Channel provides the necessary infrastructure to connect as many as 7 AHB Slaves (numbered 1-7) to an AHB bus Master. The AHB Channel performs a combinational decode on the incoming AHB address to produce the block selects for the various AHB Slaves. The address decoder contained in the AHB Channel has one area of memory reserved for a configurable remap application.
Typically, the AHB Channel is connected as in the following description. Each of the AHB Channel’s 7 Mirrored Slave Ports is connected to an AHB Slave module (e.g. External Bus Interface, Memory Controller, AHB-to-APB Bridge.) On the Master side, the AHB Channel’s Mirrored Master Port is connected either to an AHB Arbiter (in an AHB system with multiple bus Masters) or directly to an AHB Master such as a micro-processor (in an AHB system with a single bus Master.)
Typically, the AHB Channel is connected as in the following description. Each of the AHB Channel’s 7 Mirrored Slave Ports is connected to an AHB Slave module (e.g. External Bus Interface, Memory Controller, AHB-to-APB Bridge.) On the Master side, the AHB Channel’s Mirrored Master Port is connected either to an AHB Arbiter (in an AHB system with multiple bus Masters) or directly to an AHB Master such as a micro-processor (in an AHB system with a single bus Master.)
查看 AHB Channel with Decoder and Data Mux 详细介绍：
- 查看 AHB Channel with Decoder and Data Mux 完整数据手册
- 联系 AHB Channel with Decoder and Data Mux 供应商

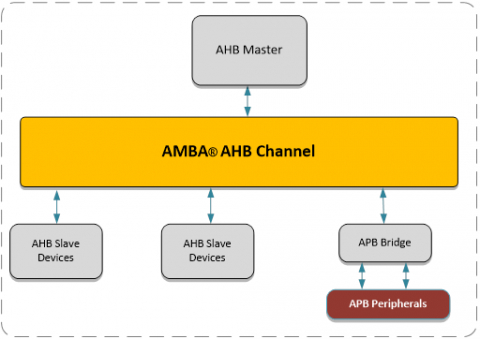

Block Diagram of the AHB Channel with Decoder and Data Mux
