AHB Arbiter
The AHB Arbiter arbitrates for the AHB bus among as many as four AHB masters. The AHB Arbiter implements a round-robin arbitration algorithm to AHB Masters that are requesting use of the bus. Only one master may control a given phase of the AHB transaction at a given time.
AHB is a pipelined bus in which there are three distinct phases: Arbitration Phase, Address (or Control) Phase, and Data Phase. A consequence of pipelining is that these phases overlap in time. For example, it is possible that Master A wins the Arbitration Phase that is coincident with the Address Phase owned by Master B and the Data Phase owned by Master C. It is in these terms that an AHB system must be discussed.
The AHB Arbiter has four distinct Mirrored-Master Ports, each of which can be connected to an AHB Master (e.g. a processor or a DMA Controller), and one Port that connects to an AHB subsystem, typically through an AHB Channel module.
AHB is a pipelined bus in which there are three distinct phases: Arbitration Phase, Address (or Control) Phase, and Data Phase. A consequence of pipelining is that these phases overlap in time. For example, it is possible that Master A wins the Arbitration Phase that is coincident with the Address Phase owned by Master B and the Data Phase owned by Master C. It is in these terms that an AHB system must be discussed.
The AHB Arbiter has four distinct Mirrored-Master Ports, each of which can be connected to an AHB Master (e.g. a processor or a DMA Controller), and one Port that connects to an AHB subsystem, typically through an AHB Channel module.
查看 AHB Arbiter 详细介绍：
- 查看 AHB Arbiter 完整数据手册
- 联系 AHB Arbiter 供应商

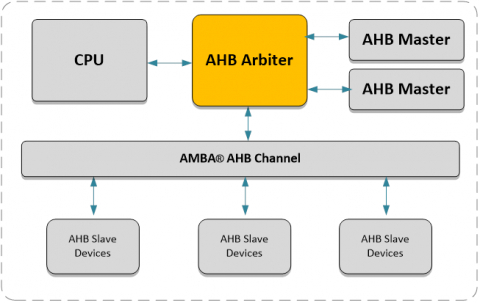

Block Diagram of the AHB Arbiter
