add encryption, compression ... in your datas
This architecture proposal is based on NVMe offloaded IPs. It is integrated in a FPGA and could be also be integrated in ASIC, allowing to provide design flexibility and the ability to add processing accelerator IPs, computational storage…. IPM-NVME2NVMe solution is the perfect base to add easily your own custom logic such as erasure coding and duplication, RAID system, encryption, compression…
Such architecture can be configured in many ways depending on the storage management strategy and applications requirements. IP-Maker provides IPM-Service to help customisation of the IPM-NVME2NVME solution to your own need (multiple root ports, insertion / management of the custom logic ...).
Such architecture can be configured in many ways depending on the storage management strategy and applications requirements. IP-Maker provides IPM-Service to help customisation of the IPM-NVME2NVME solution to your own need (multiple root ports, insertion / management of the custom logic ...).
查看 add encryption, compression ... in your datas 详细介绍：
- 查看 add encryption, compression ... in your datas 完整数据手册
- 联系 add encryption, compression ... in your datas 供应商

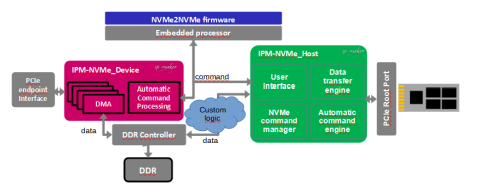

Block Diagram of the add encryption, compression ... in your datas
Video Demo of the add encryption, compression ... in your datas
This is the NVM Express demo from IP-Maker demonstrated at Flash Memory Summit 2012, Santa Clara, CA. The NVMe IP is integrated in a FPGA-based board including all the mandatory features of the NVM Express specification 1.0d. NVMe protocol is observed with a protocol analyzer from Teledyne Lecroy.
