Active Programmable Low Pass Filter
The WEA321250LPF25CH5ST55 is an active 5th order Chebyshev Low Pass filter, synthesized in a Leapfrog architecture. It has programmable cutoff frequency ranging from 32.5MHz to 1.25GHz with a passband transimpedance gain of 2.2KΩ . The resistors are programmable to minimize the process variation effect on the frequency.
查看 Active Programmable Low Pass Filter 详细介绍:
- 查看 Active Programmable Low Pass Filter 完整数据手册
- 联系 Active Programmable Low Pass Filter 供应商

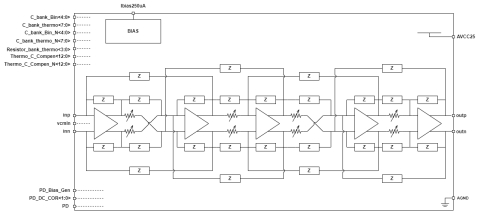

Block Diagram of the Active Programmable Low Pass Filter
