The AAC-LC Audio Decoder (CWda87) is an audio IP core for decoding up to 6 audio channels in real-time.
This core contains the AAC-LC decoder software and the Coreworks processor based hardware audio engine platform (CWda1011).
The software is compiled into an image file (.bin) which can be automatically boot-loaded through one of the control interfaces (parallel AMBA APB or serial SPI) and run on the audio engine platform with simple parameters setting.
The program can be configured, controlled and monitored by means of a configuration, control, and status register file, accessed by the control interfaces.
The audio input and output interfaces uses a native parallel interface. Other standard audio interfaces, such as I2S/TDM and SPDIF are also available.
The interface to the external memory can be one of the following: AMBA AXI (for ASICs or Xilinx FPGAs), Avalon (for Altera FPGAs) or MIG (for Xilinx FPGAs).
The CWda1011 platform is an instance of the generic CWdaXYZ audio engine platform. Other platforms are available for a different number of audio channels (from 2 channels, up to 32 channels). Please contact us to select the best solution for your requirements.
- AAC-LC decoders are compliant with the ISO/IEC 13818-7 audio standard, using Fraunhofer IIS high quality software
- Supported channel modes: mono, dual mono, stereo (2.0), 2.1, 3.0, 3.1, 4.0, 5.0, and 5.1
- Supported sample rates: 11.025, 12, 16, 22.05, 24, 32, 44.1 and 48 kHz
- Supported transport types: ADTS, LATM, and LOAS
- 16-bit output audio resolution
- Requires 1,35 MB of external memory
- Configurable output latency useful to synchronize with other sources (e.g. video)
- Minimum latency: 1 frame assuming burst data input
- Software interface protocol for control, configuration and monitoring
- Parameter change while muting or repeating one frame
- Real time operation @80 MHz for worst-case settings (maximum bitrate and maximum sampling rate). Results for other settings can be provided upon request.
- Low operation frequency
- Low power consumption
- Optimizable to fulfill different design specifications
- Program binary
- Software manual
- Netlist or RTL Implementation constraints
- Hardware datasheet
- Simulation environment or evaluation board (optional)

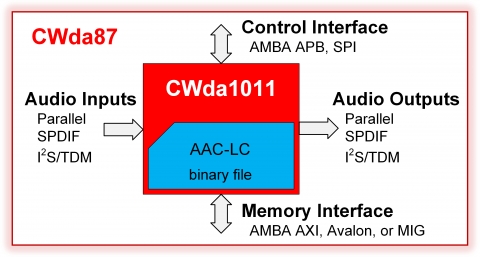

Block Diagram of the AAC-LC Audio Decoder
