The OT3910 is a set of cells for implementing 800Mb DDR (400MHz) LVDS IO in 180n CMOS processes.
Includes transmitter and receiver IO's. Also core based bias cell.
An evaluation board and test chip are available. The chip has built in BER testing. Key IO signals are available on coax headers.
- 400MHz (800Mb DDR) operation.
- Receive, Transmit and bias cells.
- Meets or exceeds the TIA/EIA-644 LVDS standard.
- 1.8V core voltage.
- Integrated 50Ω termination.
- Receive fault detection.
- 0.3ns differential pulse skew.
- 1nS receive propagation delay.
- Compatible with 75µ wide IOLIB cells.
- -40°C to 140°C temperature operation.
- Low power dissipation.
- GDS format layout.
- Netlist for LVS.
- Verilog model.
- Metal outline.
- Design review spice files.
- Timing files.
- Integration notes.
- Test notes.

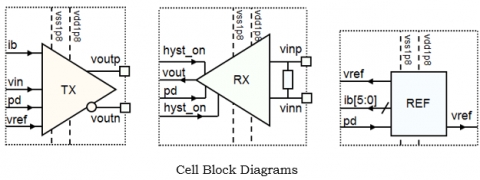

Block Diagram of the 800MHz LVDS Cell Set for 180nm
