8-Bit Microcontroller Based on the W65C02
The W65Cx65 Microcontrollers have interfaces for
connected Things for sensing, processing, communicating and actuating (SPCA). The W65Cx65 Microcontrollers are
described with the Verilog HDL for use with both FPGAs and ASIC design and manufacturing flow.
WDC creates application-specific versions of the W65Cx65 for variants of the MAX10 technology.
The MAX10M08SA is first available on MyMENSCH™ Rev-C evaluation and developer board.
The W65Cx65 Microcontrollers have a CFM MyMENSCH Monitor for boot loading and debugging user code with WDCTools Assembly and C language support, Hardware Breakpoint Module (HBM), multipliers, divider, Unique Chip ID, ACIAs/UARTs, VIAs, User GPIO pins, SPI Master, I2C Master, initialized and memory protected RAM for User code from the USB developer port or User FLASH Memory (UFM), and varying amounts of data RAM.
Development tools are available for the creation of 65xx application code.
connected Things for sensing, processing, communicating and actuating (SPCA). The W65Cx65 Microcontrollers are
described with the Verilog HDL for use with both FPGAs and ASIC design and manufacturing flow.
WDC creates application-specific versions of the W65Cx65 for variants of the MAX10 technology.
The MAX10M08SA is first available on MyMENSCH™ Rev-C evaluation and developer board.
The W65Cx65 Microcontrollers have a CFM MyMENSCH Monitor for boot loading and debugging user code with WDCTools Assembly and C language support, Hardware Breakpoint Module (HBM), multipliers, divider, Unique Chip ID, ACIAs/UARTs, VIAs, User GPIO pins, SPI Master, I2C Master, initialized and memory protected RAM for User code from the USB developer port or User FLASH Memory (UFM), and varying amounts of data RAM.
Development tools are available for the creation of 65xx application code.
查看 8-Bit Microcontroller Based on the W65C02 详细介绍：
- 查看 8-Bit Microcontroller Based on the W65C02 完整数据手册
- 联系 8-Bit Microcontroller Based on the W65C02 供应商

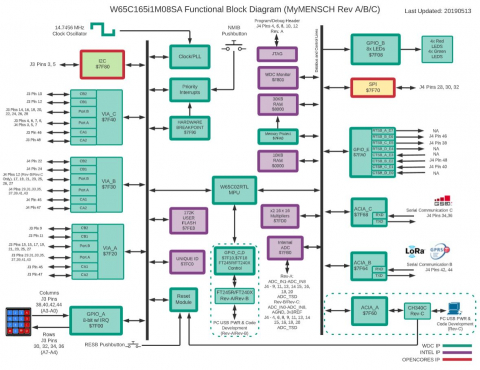

Block Diagram of the 8-Bit Microcontroller Based on the W65C02
