8/16-Bit Microcontroller Based on the W65C816

The W65C816i1M16SA Microcontrollers have interfaces for
connected Things for sensing, processing, communicating and actuating (SPCA). The microcontrollers are
described with the Verilog HDL for use with both FPGAs and ASIC design and manufacturing flow.
WDC creates application-specific versions of the W65Cx65 for variants of the MAX10 technology.
The MAX10M16SA is first available on MyMENSCH™ Rev-B evaluation and developer board.

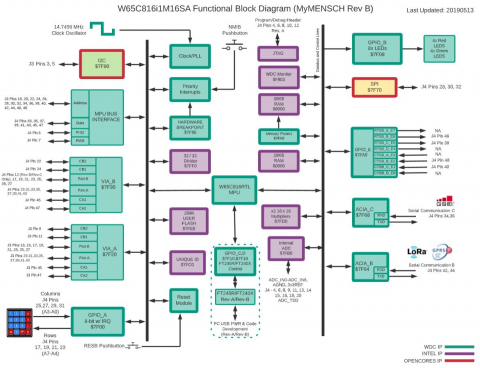

The W65C816 Microcontrollers have a CFM MyMENSCH Monitor for boot loading and debugging user code with WDCTools Assembly and C language support, Hardware Breakpoint Module (HBM), multipliers, divider, Unique Chip ID, ACIAs/UARTs, VIAs, User GPIO pins, SPI Master, I2C Master, initialized and memory protected RAM for User code from the USB developer port or User FLASH Memory (UFM), and varying amounts of data RAM.

Development tools are available for the creation of 65xx application code.
