750mV Voltage Reference - Ultra Low Voltage (1V), Ultra Low Power (400nW) LFoundry 0.15 μm
This macro-cell is an ultra low power general purpose voltage reference generator core designed for LFoundry 0.15µm LF150 CMOS technology STD (Standard) and LP (Low Power) process. The circuit generates an unbuffered 750mV, temperature compensated voltage reference (200ppm/ C). The reference can be trimmed against process variations by a 5-bit digital bus. The core is easily retargeted to any other CMOS technology due to high portability MOSFET-only voltage reference architecture.
查看 750mV Voltage Reference - Ultra Low Voltage (1V), Ultra Low Power (400nW) LFoundry 0.15 μm 详细介绍：
- 查看 750mV Voltage Reference - Ultra Low Voltage (1V), Ultra Low Power (400nW) LFoundry 0.15 μm 完整数据手册
- 联系 750mV Voltage Reference - Ultra Low Voltage (1V), Ultra Low Power (400nW) LFoundry 0.15 μm 供应商

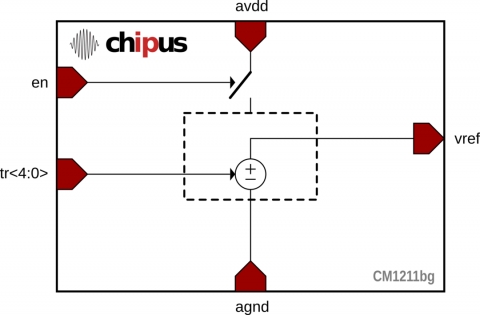

Block Diagram of the 750mV Voltage Reference - Ultra Low Voltage (1V), Ultra Low Power (400nW) LFoundry 0.15 μm
