7.8 GHz to 9.1 GHz Microwave Fractional – N Synthesizer
The WEA89S22G is a complete 24 bits Fractional-N microwave synthesizer able to synthesize frequencies from 7 GHz to 9 GHz with the integrated VCO. It consists of a low noise phase detector with lock detect indication, a programmable charge pump, a programmable loop filter, a multi modulus Prescaler, and a 64 band VCO with auto-calibration circuitry. Implemented in a 22nm CMOS SOI GlobalFoundries process, the WEA89S22G occupies a silicon area of 1.9 mm2.It exhibits high performance, high integration and flexibility for RADAR applications.
查看 7.8 GHz to 9.1 GHz Microwave Fractional – N Synthesizer 详细介绍：
- 查看 7.8 GHz to 9.1 GHz Microwave Fractional – N Synthesizer 完整数据手册
- 联系 7.8 GHz to 9.1 GHz Microwave Fractional – N Synthesizer 供应商

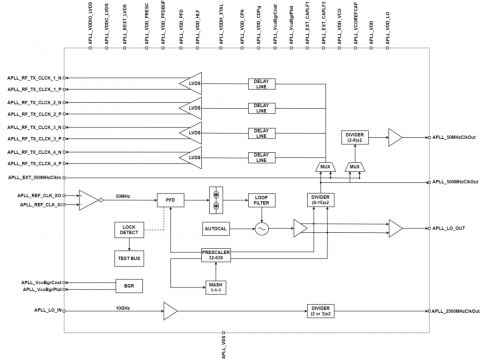

Block Diagram of the 7.8 GHz to 9.1 GHz Microwave Fractional – N Synthesizer
