65nm 8-ch 10bit 1MSPS SAR ADC
The L6GAD10B001M is an 8-channel, 10-bit analog-to-digital converter (ADC), which consists of a successive approximation register(SAR), a capacitor-based ADC, and an inherent sample-and-hold circuit.
The L6GAD10B001M, operating with analog power supply (AVDD) ranging from 2.2V to 3.6V, consumes maximum 700uA current. The ADC features the sampling rate of 1MSPS over industrial temperature range (-40℃ to +85℃) and occupies the core cell area of 0.09mm^2.
The L6GAD10B001M, operating with analog power supply (AVDD) ranging from 2.2V to 3.6V, consumes maximum 700uA current. The ADC features the sampling rate of 1MSPS over industrial temperature range (-40℃ to +85℃) and occupies the core cell area of 0.09mm^2.
查看 65nm 8-ch 10bit 1MSPS SAR ADC 详细介绍：
- 查看 65nm 8-ch 10bit 1MSPS SAR ADC 完整数据手册
- 联系 65nm 8-ch 10bit 1MSPS SAR ADC 供应商

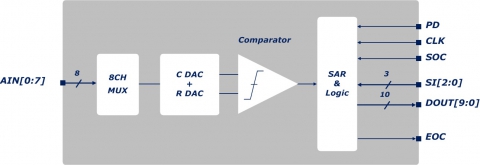

Block Diagram of the 65nm 8-ch 10bit 1MSPS SAR ADC
