56MHz Oscillator
The ll_osc6200s01_lf6s_4lm is a 1.5V oscillator whose output frequency (FOUT) is controlled by internal registers. The typical output frequency of the oscillator is 56MHz which can be calibrated by using EXTAFC[5:0]. It consists of a digital core, an oscillator (OSC) and a current reference.
查看 56MHz Oscillator 详细介绍：
- 查看 56MHz Oscillator 完整数据手册
- 联系 56MHz Oscillator 供应商

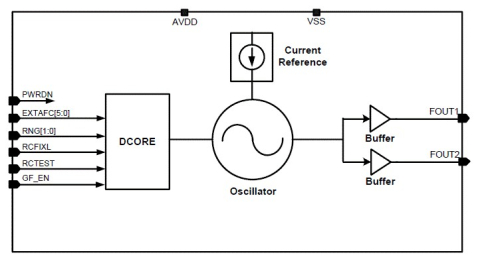

Block Diagram of the 56MHz Oscillator
