40nm 1.1V 2GHz-4.7GHz Fractional-N RF Quadrature PLL
The TRV302TSM40LP IP is a 1.1V low-power, low-silicon-area and high-performance 2.0GHz-to-4.7GHz Fractional-N RF PLL implemented in TSMC Low-Power 40nm CMOS process technology. Its low loop-filter bandwidth and low phase-noise characteristics makes it especially suitable for use in
on-chip Quadrature Local Oscillator References for Tx and Rx up/down-converters within wireless communication and Internet-of-Things integrated circuit chipsets (LTE, WiFi, IoT, etc).
on-chip Quadrature Local Oscillator References for Tx and Rx up/down-converters within wireless communication and Internet-of-Things integrated circuit chipsets (LTE, WiFi, IoT, etc).
查看 40nm 1.1V 2GHz-4.7GHz Fractional-N RF Quadrature PLL 详细介绍：
- 查看 40nm 1.1V 2GHz-4.7GHz Fractional-N RF Quadrature PLL 完整数据手册
- 联系 40nm 1.1V 2GHz-4.7GHz Fractional-N RF Quadrature PLL 供应商

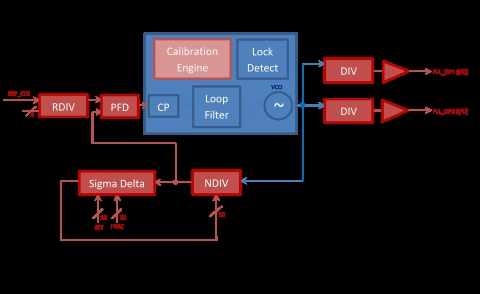

Block Diagram of the 40nm 1.1V 2GHz-4.7GHz Fractional-N RF Quadrature PLL
