32-bit CPU IP core supporting ISO 26262 ASIL B level functional safety for automotive applications
AndesCore™ D25F-SE is a 32-bit CPU IP core that supports ISO 26262 ASIL B level functional safety for automotive applications. Approved based on the functional safety assignments of a Safety Element Out-of-Context (SEooC), which includes the ISO 26262 compliant development process and the qualitative approach with respect to hardware safety analysis, D25F-SE is certified to be used in safety-related applications.
Based on AndeStar™ V5 architecture that incorporated RISC-V technology, D25F-SE is capable of delivering high per-MHz performance and operating at high frequencies with small gate count. It supports the RISC-V P-extension (draft) DSP/SIMD ISA contributed by Andes, single-/ double-precision floating point and bit-manipulation instructions, branch prediction for efficient branch execution, Instruction and Data caches, local memories for low-latency accesses, and ECC for memory error protection. Features also includes RISC-V Platform Level Interrupt Controller, AXI 64-bit or AHB 64/32-bit system bus, WFI mode for low power and power management, and JTAG debug interface.
Based on AndeStar™ V5 architecture that incorporated RISC-V technology, D25F-SE is capable of delivering high per-MHz performance and operating at high frequencies with small gate count. It supports the RISC-V P-extension (draft) DSP/SIMD ISA contributed by Andes, single-/ double-precision floating point and bit-manipulation instructions, branch prediction for efficient branch execution, Instruction and Data caches, local memories for low-latency accesses, and ECC for memory error protection. Features also includes RISC-V Platform Level Interrupt Controller, AXI 64-bit or AHB 64/32-bit system bus, WFI mode for low power and power management, and JTAG debug interface.
查看 32-bit CPU IP core supporting ISO 26262 ASIL B level functional safety for automotive applications 详细介绍：
- 查看 32-bit CPU IP core supporting ISO 26262 ASIL B level functional safety for automotive applications 完整数据手册
- 联系 32-bit CPU IP core supporting ISO 26262 ASIL B level functional safety for automotive applications 供应商

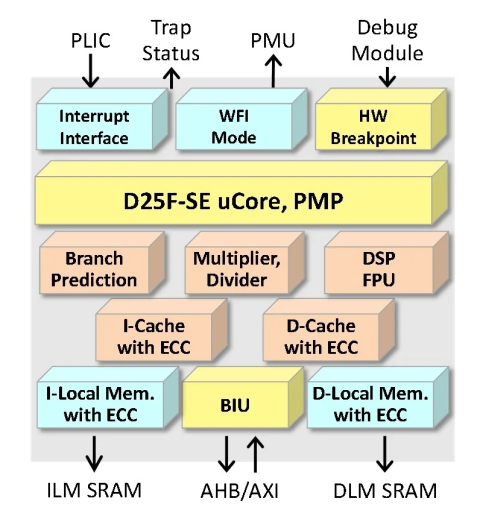

Block Diagram of the 32-bit CPU IP core supporting ISO 26262 ASIL B level functional safety for automotive applications
