2MHz 1.71-5.5V Oscillator Low Power, ± 1% accuracy at @ 27◦C after trimming
The CM4043hh is a low power, high-accuracy, output glitch-free, wide supply voltage range, general purpose 2MHz oscillator.
It achieves ± 1% accuracy after trimmed @ 27oC and ±2.5% from -40 to 85oC.
A 6-bit digital bus allows frequency adjustment against process variation.
The trimming covers ±25% of the frequency range, and has minimum variation (1 LSB) of 16kHz.
It is suggested to combine this IP with CM1227hh IP, which has all the
characteristics needed for the reference current and voltages.
It achieves ± 1% accuracy after trimmed @ 27oC and ±2.5% from -40 to 85oC.
A 6-bit digital bus allows frequency adjustment against process variation.
The trimming covers ±25% of the frequency range, and has minimum variation (1 LSB) of 16kHz.
It is suggested to combine this IP with CM1227hh IP, which has all the
characteristics needed for the reference current and voltages.
查看 2MHz 1.71-5.5V Oscillator Low Power, ± 1% accuracy at @ 27◦C after trimming 详细介绍：
- 查看 2MHz 1.71-5.5V Oscillator Low Power, ± 1% accuracy at @ 27◦C after trimming 完整数据手册
- 联系 2MHz 1.71-5.5V Oscillator Low Power, ± 1% accuracy at @ 27◦C after trimming 供应商

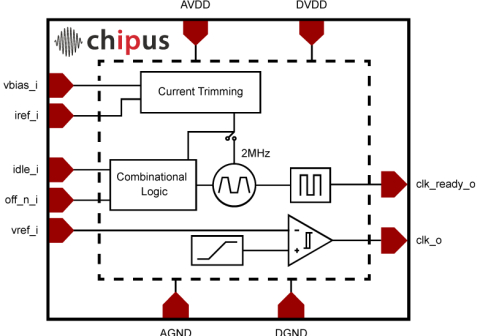

Block Diagram of the 2MHz 1.71-5.5V Oscillator Low Power, ± 1% accuracy at @ 27◦C after trimming
