24-bit Sigma Delta Charge-Redistribution DAC (High bandwidth)
The 24-bit Sigma Delta Charge-Redistribution DAC is designed to have high absolute accuracy, low noise and low power consumption, and it is robust against temperature variations. This 24-bit Sigma Delta Charge-Redistribution DAC is ideally suited for high-performance audio as well as demanding control applications in a wide variety of environments.
The 24-bit Sigma Delta Charge-Redistribution DAC is based on the SDCRDAC24b, but this version is not radiation hardened. Instead, the 24-bit Sigma Delta Charge-Redistribution DAC has increased bandwidth, increased temperature stability and lower power consumption.
This product is silicon-verified.
The 24-bit Sigma Delta Charge-Redistribution DAC is based on the SDCRDAC24b, but this version is not radiation hardened. Instead, the 24-bit Sigma Delta Charge-Redistribution DAC has increased bandwidth, increased temperature stability and lower power consumption.
This product is silicon-verified.
特色
- Noise floor: <-139dBV (10uHz - 1Hz)
- Noise floor: -138dBV (1Hz - 50Hz)
- Noise floor: -112dBV (20Hz - 20kHz)
- Input sample rate: 0-3MS/s
- Total out-of-band noise: < -60dB, without filtering
- Low latency (down to 9 cock cycles): Ideal for closed loop applications
- Wide common mode range
- Quasi-differential outputs
- Outputs suitable for both current-mode and voltage-mode operation
- Total power consumption: 950 uW (fclk=4MHz; power scales linearly with fclk)
- Gain stability vs temperature: <2ppm/K
- Low offset: <3uV
- No code dependent loading of Vref
- Technology: UMC 0.18 um CMOS
- Silicon-verified
- Design is scalable with regard to area and performance
应用
- High-precision control systems
- Automatic test equipment
- Gain and offset adjustment/calibration
- Programmable voltage and current sources
- Process and servo control
- High-quality audio
- Active noise reduction systems

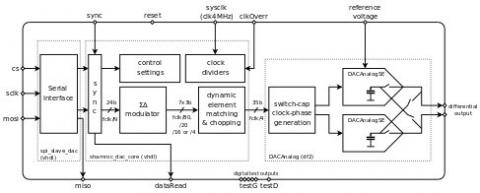

Block Diagram of the 24-bit Sigma Delta Charge-Redistribution DAC (High bandwidth)
