20b-linear 100MS/s DAC (Digital/Analog Converter) with 98dB SNR in 300kHz
特色
- Implementation technology: X-FAB 180nm SOI (XT018) 5+1 Metal, Double-MiM Cap for high linearity and low temp. coeff.
- Architecture: digital oversampling Sigma-Delta Modulator with 38 current-steering cells and 2stage analog RC reconstruction filtering with two fully differential Voltage Amplifiers
- Power Supply: 1.8Vdd analog & digital core, 5Vdd analog power output
- 20bit 10MS/s digital input interpolated (10x, 20x) to 100MS/s as oversampling Sigma-Delta Modulator input
- 3 different digital scrambler/randomizer implemented: Dynamic Element Matching (DEM), Data Weighted Averaging (DWA)
- fully differential 2-stage analog signal path with out-of-band noise filtering (> 1,25MHz)
查看 20b-linear 100MS/s DAC (Digital/Analog Converter) with 98dB SNR in 300kHz 详细介绍：
- 查看 20b-linear 100MS/s DAC (Digital/Analog Converter) with 98dB SNR in 300kHz 完整数据手册
- 联系 20b-linear 100MS/s DAC (Digital/Analog Converter) with 98dB SNR in 300kHz 供应商

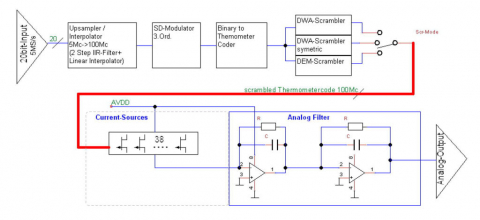

Block Diagram of the 20b-linear 100MS/s DAC (Digital/Analog Converter) with 98dB SNR in 300kHz
