2.8 Gbps LVDS IO
The LVDS I/O is a single macro (input, output and reference block). Both driver and receiver operating up to 1.4GHz (2.8 Gbps ). The Driver is designed to drive 100Ω differential termination.
查看 2.8 Gbps LVDS IO 详细介绍：
- 查看 2.8 Gbps LVDS IO 完整数据手册
- 联系 2.8 Gbps LVDS IO 供应商

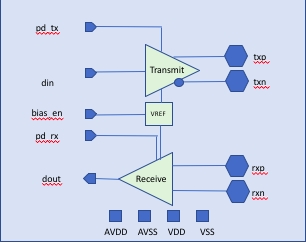

Block Diagram of the 2.8 Gbps LVDS IO
