2.4GHz Integer PLL
This PLL is a 1.2V/0.75V dual supply-voltage phase locked loop (PLL) with a wide-output-frequency-range for frequency synthesis. It consists of a phase-frequency detector (PFD), a charge pump, a voltage-controlled oscillator (VCO), a 6-bit pre-divider, a 10-bit main-divider, a 3-bit scaler and an automatic frequency control (AFC).
查看 2.4GHz Integer PLL 详细介绍：
- 查看 2.4GHz Integer PLL 完整数据手册
- 联系 2.4GHz Integer PLL 供应商

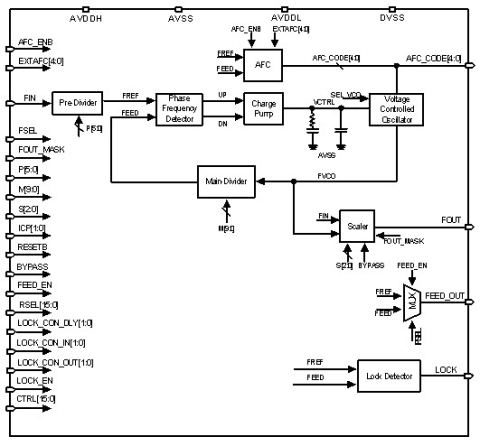

Block Diagram of the 2.4GHz Integer PLL
