1V Low – Dropout (LDO) Voltage Regulator
The WEA3610LD45G is a voltage feedback amplifier (series – shunt) which active part is comprised of a telescopic cascode amplifier stage, followed by a PMOS pass – device which operates in saturation as a common source stage. The Current Limit Protection circuit detects an output current bigger than the prescribed value and the Power Good circuit detects when the output voltage of the LDO is within a certain range, in which the output is considered valid. Results validate a 1V output voltage from a 1.8 V to 3.6 V input voltage with a current dissipation of 3uA.
查看 1V Low – Dropout (LDO) Voltage Regulator 详细介绍：
- 查看 1V Low – Dropout (LDO) Voltage Regulator 完整数据手册
- 联系 1V Low – Dropout (LDO) Voltage Regulator 供应商

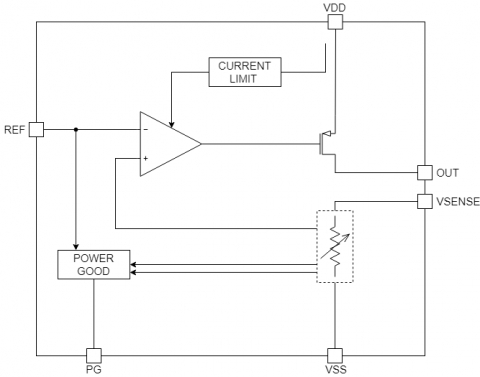

Block Diagram of the 1V Low – Dropout (LDO) Voltage Regulator
