16-Channel 10-Bit 1MSPS ADC
The ll_adc2800s01_ln28lpp_7002 is a 1.8V/1.0V dual supply-voltage 10-bit analog-to-digital converter (ADC) with 16-channel analog input MUX and level-shifters for low-voltage digital interface. It is designed in 28nm CMOS process. It converts the analog input signal to 10-bit digital output codes at a maximum conversion rate of 1MSPS using 12MHz internal main operation clock. The device is a Successive Approximation (SAR) type monolithic ADC, which provides an on-chip sample-and-hold and power-down mode.
查看 16-Channel 10-Bit 1MSPS ADC 详细介绍:
- 查看 16-Channel 10-Bit 1MSPS ADC 完整数据手册
- 联系 16-Channel 10-Bit 1MSPS ADC 供应商

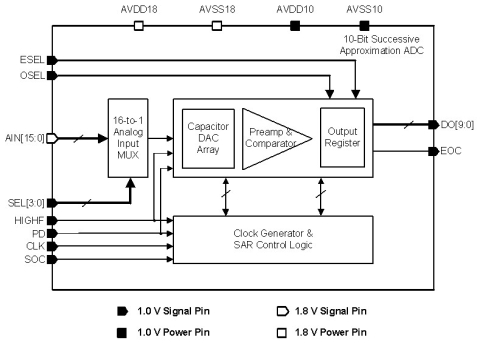

Block Diagram of the 16-Channel 10-Bit 1MSPS ADC
