14b-100KSps Cal-SAR ADC
CT22404 is a 14-bit 100 kS/s Analog to Digital converter designed to deliver best in class performances in term of power consumption.
It is implemented with SAR architecture and offline calibration.
With 150uA total current consumption the figure of merit of the ADC is 300 fJ/step, that is at the state of the art for its frequency sampling range.
The calibration time at maximum clock frequency in average mode for max precision is less than 2 ms. In case of single shot calibration it’s less than 200us.
It is implemented with SAR architecture and offline calibration.
With 150uA total current consumption the figure of merit of the ADC is 300 fJ/step, that is at the state of the art for its frequency sampling range.
The calibration time at maximum clock frequency in average mode for max precision is less than 2 ms. In case of single shot calibration it’s less than 200us.
查看 14b-100KSps Cal-SAR ADC 详细介绍：
- 查看 14b-100KSps Cal-SAR ADC 完整数据手册
- 联系 14b-100KSps Cal-SAR ADC 供应商

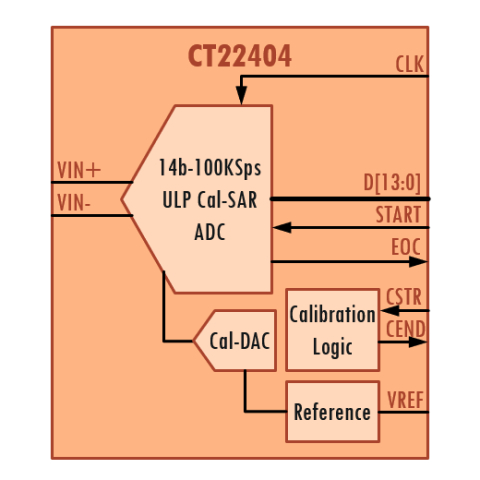

Block Diagram of the 14b-100KSps Cal-SAR ADC
