14-bit, 600 MSPS Ultra Low Power ADC in 28nm CMOS
The ODT-ADP-14B600M-T28 is a low power high speed pipelined ADC designed in a 28nm standard CMOS process. This 14-bit ADC features excellent dynamic performance of 65dBFS SNDR and over 70dB SFDR with up to 1.25Vpp differential input for demanding applications. The ADC can work at sampling rates up to 600MSPS for maximum flexibility. It is fully specified from -40°C to 125°C.
特色
- 14-bit resolution, variable sampling rate up to 600 MSPS
- Fully differential operation, fully specified from -40C to 125C
- Ultra low power dissipation with patented SWIFT technology
- SFDR > 82, ENOB > 10.6 bits
- Internal bandgap and voltage reference
- Available in I/Q and arrayed configurations
- Robust, silicon proven technology
- Over 20 years of delivering industry leading data converters for high volume production
优势
- Class leading performance
- Ultra low power
- Compact area
- Standard CMOS process (no special layers)
- -40C to 125C operation
可交付内容
- Datasheet
- Hard Macro (GDSII)
- Characterization Report (as applicable)
- Abstract View (LEF) for top level connectivity
- Integration and Customer Support
应用
- Software defined radio
- Medical Imaging
- High speed instrumentation
- Medical diagnostics
- Wireless communications
- Wireline communications
- DOCSIS 3.x cable modem

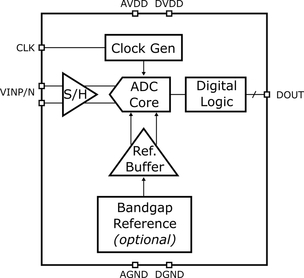

Block Diagram of the 14-bit, 600 MSPS Ultra Low Power ADC in 28nm CMOS
