14-bit, 300 MSPS Ultra Low Power ADC in 28nm CMOS
The ODT-ADP-14B300M-28 is a low power high speed pipelined ADC designed in a 28nm standard CMOS process, implemented using Omni Design's groundbreaking low power SWIFT technology. This 14-bit ADC features excellent dynamic performance of 65dBFS SNDR and over 70dB SFDR with up to 1.25Vpp differential input for demanding applications. The ADC can work at sampling rates up to 300MSPS for maximum flexibility.
查看 14-bit, 300 MSPS Ultra Low Power ADC in 28nm CMOS 详细介绍：
- 查看 14-bit, 300 MSPS Ultra Low Power ADC in 28nm CMOS 完整数据手册
- 联系 14-bit, 300 MSPS Ultra Low Power ADC in 28nm CMOS 供应商

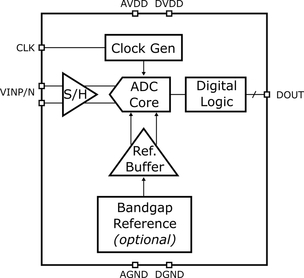

Block Diagram of the 14-bit, 300 MSPS Ultra Low Power ADC in 28nm CMOS
