12bits, 32Msps Pipeline AD Converter
CT22105 is a 12-bit Pipeline ADC with single-ended to fully differential Sample and Hold and integrated Voltage and Current reference.
Internal voltage references are derived from 1.8V with an internal resistor divider, filters and buffers. Current reference is generated using external 1% resistor.
The ADC can work at 4.8Msps or 32Msps rate; current consumption and performances will vary accordingly.
Internal voltage references are derived from 1.8V with an internal resistor divider, filters and buffers. Current reference is generated using external 1% resistor.
The ADC can work at 4.8Msps or 32Msps rate; current consumption and performances will vary accordingly.
查看 12bits, 32Msps Pipeline AD Converter 详细介绍：
- 查看 12bits, 32Msps Pipeline AD Converter 完整数据手册
- 联系 12bits, 32Msps Pipeline AD Converter 供应商

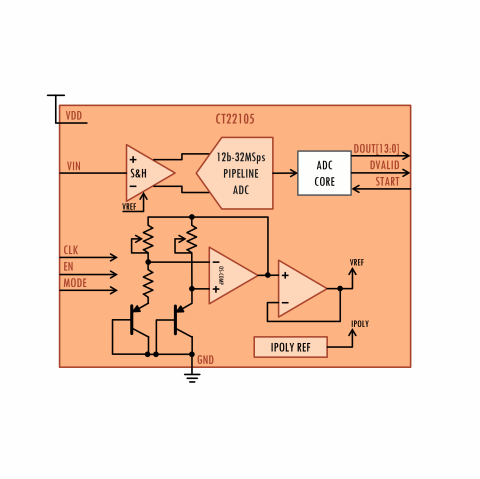

Block Diagram of the 12bits, 32Msps Pipeline AD Converter
