12b 1MS/s cyclic/algorithmic serial ADC (Analog/ Digital Converter)

特色

• Effective Number of Bits: 11b (SNDR=68dB signal-to-noise-and-distortion-ratio)
• Power supply 3.3V
• 0.35um CMOS Technology
• Low input sampling capacitor of 7pF
• Fully differential analog voltage input (3 pins: Vin+, Vin- with adjustable common mode level Vcm)
• Layout chip area 0.75mm²

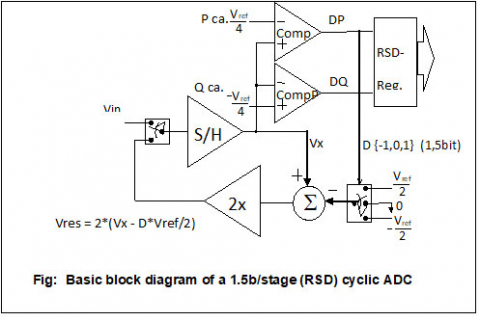

Block Diagram of the 12b 1MS/s cyclic/algorithmic serial ADC (Analog/ Digital Converter)
