PMCC_XCM_64X64_A IP block is a 128 channels analog front-end. The IP block consists of 128 variable gain amplifiers (VGAs), 128 2-bit digitizers, bias and calibration circuits. It converts analog input signals in the 10MHz-500MHz range to digital data. The nominal sampling frequency is 1GHz. The IP block combines 16 groups of 8 analog front-ends in each group. The biasing currents, the ADC conversion range and the targeted VGA gain level are programmable. These features are used in production for operational margin estimation. Control functions and layout configuration of the IP block can be customized upon special agreement.
- Single-ended inputs for reducing the number of pads.
- Adjustable VGA input termination 50Ω, 100Ω, 200Ω or Hi-Z.
- A VGA with offset correction and an AGC loop.
- Input power level range from -20dBm to -10dBm.
- Data digitizing at 1GHz with 2-bit precision using zero-crossing and magnitude comparators.
- Offset correction for the zero-crossing comparator.
- Adjustable ADC conversion range.
- The TID and latch-up immune 45nm SOI CMOS (low K) process.
- PMCC_XCM_64X64_A IP block includes 128 channels analog front-end. It converts analog input signals in the 10MHz-500MHz range to 2-bit digital data. The nominal sampling frequency is 1GHz. The IP block combines 16 groups of 8 analog front-ends in each group.
- GDSII file
- Netlist for Spectre simulation
- Layout and Schematic (DRC & LVS) verification reports
- Complete IP block’s datasheet with integration/application notes
- Optional deliverables:
- Library containing an entire hierarchy of the IP block’s schematic and layout cells
- Extracted views containing parasitic components from layout
- Verilog-A model replicating the IP block’s functionally
- Simulation test-benches
- Optional components specific to the IP block: biasing, specialized I/Os, glue-logic, transmission lines, etc.
- Radiometer, interferometer, spectrometer instruments.
- Radio astronomy.
- Cross-correlation systems.

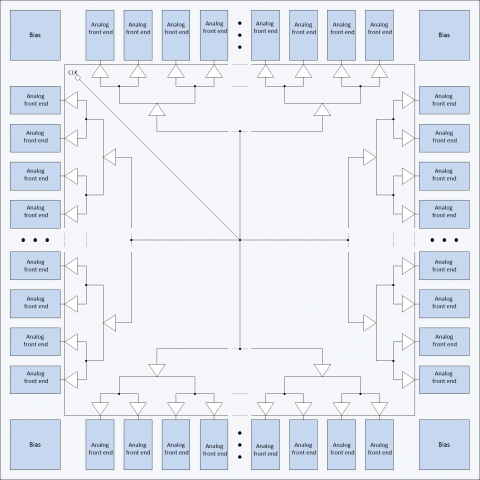

Block Diagram of the 128 Channel Analog Front-End
