12-bit ultra-low power single-ended SAR ADC
040TSMC_ADC_01 is 12-bit analog to digital converter (ADC) with single-ended input of sample rates up to 1MSPS. The ADC supports a wide range of input clock frequency from 32kHz to 20MHz. The ADC operates with a 1.62V – 3.63V reference and includes a 12-bit successive approximation register (SAR) with inherent sample-and-hold.
查看 12-bit ultra-low power single-ended SAR ADC 详细介绍：
- 查看 12-bit ultra-low power single-ended SAR ADC 完整数据手册
- 联系 12-bit ultra-low power single-ended SAR ADC 供应商

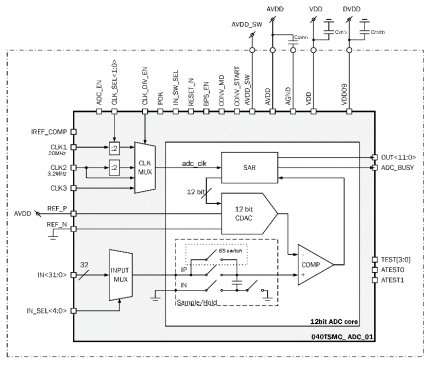

Block Diagram of the 12-bit ultra-low power single-ended SAR ADC
