12-bit Charge Redistribution DAC - Fs=160MHz
The 12-bit Charge Redistribution DAC is especially suited to discrete-time applications, where the output signal is sampled, but also works well in continuous-time applications. The Charge Redistribution DAC has been optimized for high speed and low area. It has been designed for applications where DC transfer is not required.
This IP is silicon verified.
This IP is silicon verified.
查看 12-bit Charge Redistribution DAC - Fs=160MHz 详细介绍:
- 查看 12-bit Charge Redistribution DAC - Fs=160MHz 完整数据手册
- 联系 12-bit Charge Redistribution DAC - Fs=160MHz 供应商

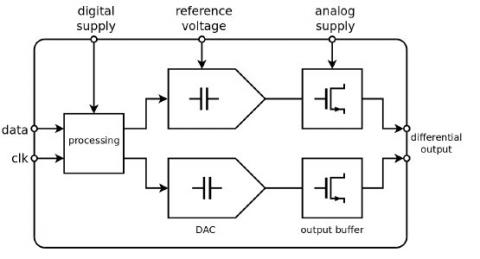

Block Diagram of the 12-bit Charge Redistribution DAC - Fs=160MHz
