10bit 1Msps SAR ADC IP Core
10-bit successive approximation Analog-to-Digital Converter (ADC) is designed for high-performance applications. Utilizing 28FDSOI technology with process options including 6 Metal (5+1), 8 Metal
(6+2), and 10 Metal (6+2+2), this ADC achieves exceptional performance while maintaining a compact silicon footprint.
With a parallel 10-bit output, this ADC offers a conversion time of 1 µs and a sampling frequency of 1 Msps, making it suitable for applications
requiring fast and accurate analog-to-digital conversion. In terms of performance, the ADC delivers exceptional accuracy with Integral Non-Linearity (INL) of less than ±1 LSB and Differential NonLinearity (DNL)of less than ±0.5 LSB, ensuring precise conversion of analog signals into digital data.
Overall, this ADC offers high-performance analogto-digital conversion in a compact and efficient
package, making it ideal for a wide range of
applications including industrial automation,
medical imaging, and telecommunications.
(6+2), and 10 Metal (6+2+2), this ADC achieves exceptional performance while maintaining a compact silicon footprint.
With a parallel 10-bit output, this ADC offers a conversion time of 1 µs and a sampling frequency of 1 Msps, making it suitable for applications
requiring fast and accurate analog-to-digital conversion. In terms of performance, the ADC delivers exceptional accuracy with Integral Non-Linearity (INL) of less than ±1 LSB and Differential NonLinearity (DNL)of less than ±0.5 LSB, ensuring precise conversion of analog signals into digital data.
Overall, this ADC offers high-performance analogto-digital conversion in a compact and efficient
package, making it ideal for a wide range of
applications including industrial automation,
medical imaging, and telecommunications.
查看 10bit 1Msps SAR ADC IP Core 详细介绍：
- 查看 10bit 1Msps SAR ADC IP Core 完整数据手册
- 联系 10bit 1Msps SAR ADC IP Core 供应商

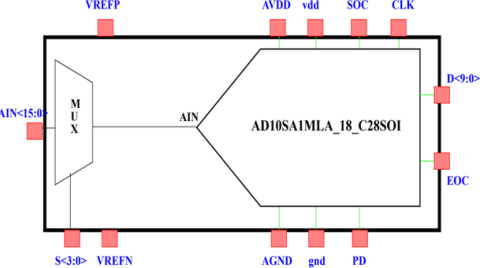

Block Diagram of the 10bit 1Msps SAR ADC IP Core
