1.8V low-power 32MHz single-bit switched-capacitor Sigma-Delta Modulator
The TRV107TSM180BCD IP is a 1.8V low-power 32MHz single-bit switched-capacitor Sigma Delta Modulator (7.8125kHz-to-62.5kHz-Nyquist-rate) implemented in TSMC Low-Power 180nm CMOS process technology. Its 13-bit performance makes it suitable for use in high-performance wireless/wireline sensor interface, fine-line Instrumentation and Internet-of-Things integrated circuit subsystems (WSN, BAN, IoT).
查看 1.8V low-power 32MHz single-bit switched-capacitor Sigma-Delta Modulator 详细介绍：
- 查看 1.8V low-power 32MHz single-bit switched-capacitor Sigma-Delta Modulator 完整数据手册
- 联系 1.8V low-power 32MHz single-bit switched-capacitor Sigma-Delta Modulator 供应商

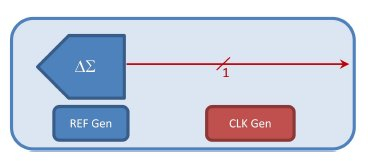

Block Diagram of the 1.8V low-power 32MHz single-bit switched-capacitor Sigma-Delta Modulator
