1.8V general purpose I/O for 4nm FinFET
The Sofics 1.8V capable GPIO is an IP macro for on-chip integration. It is a 1.8V general purpose I/O built with a stack of 1.2V MOS FINFET devices. It is controlled by 0.75V (core) signals.
Supported features include core isolation, output enable and pull enable.
Extra features such as input enable/disable, programmable drive strength and pull select, can be supported upon request.
By default, a 2kV HBM ESD protection is included. This is however easily scaled to any desired level.
This specific IP macro is designed in Samsung 4nm FINFET, and can be ported to other technologies upon request using Sofics inhouse design tool flow
Supported features include core isolation, output enable and pull enable.
Extra features such as input enable/disable, programmable drive strength and pull select, can be supported upon request.
By default, a 2kV HBM ESD protection is included. This is however easily scaled to any desired level.
This specific IP macro is designed in Samsung 4nm FINFET, and can be ported to other technologies upon request using Sofics inhouse design tool flow
查看 1.8V general purpose I/O for 4nm FinFET 详细介绍：
- 查看 1.8V general purpose I/O for 4nm FinFET 完整数据手册
- 联系 1.8V general purpose I/O for 4nm FinFET 供应商

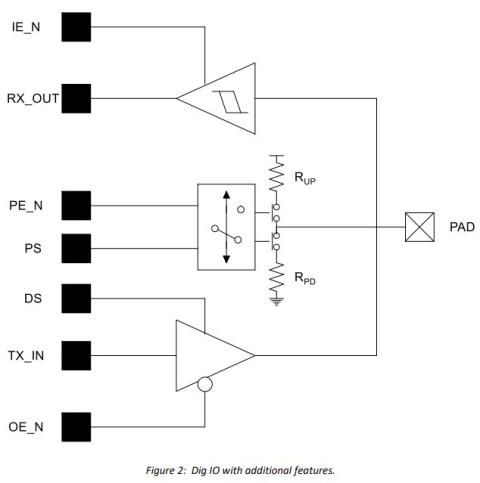

Block Diagram of the 1.8V general purpose I/O for 4nm FinFET
