1.5V Bandgap Voltage Reference
The WEA15BG45G consists of the bandgap core with switching mode which produces a constant current Iconst and a constant voltage Vconst (switch on), Ptat current Iptat and ptat voltage (switchoff). The WEA15BG45G is specified over the −40°C to +120°C temperature range.
查看 1.5V Bandgap Voltage Reference 详细介绍：
- 查看 1.5V Bandgap Voltage Reference 完整数据手册
- 联系 1.5V Bandgap Voltage Reference 供应商

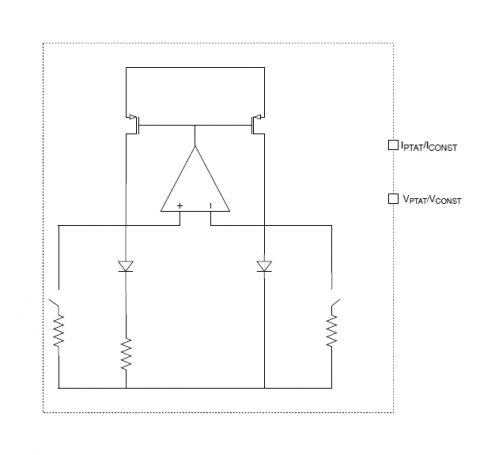

Block Diagram of the 1.5V Bandgap Voltage Reference
