1.2 V Bandgap Voltage Reference
The WEABG18NI12SFN21M22G is a band reference voltage that provides a 1.224 V output from an 1.8 V input. It is specified over the −40°C to +120°C temperature range.
查看 1.2 V Bandgap Voltage Reference 详细介绍：
- 查看 1.2 V Bandgap Voltage Reference 完整数据手册
- 联系 1.2 V Bandgap Voltage Reference 供应商

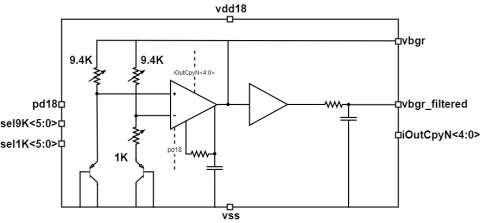

Block Diagram of the 1.2 V Bandgap Voltage Reference
